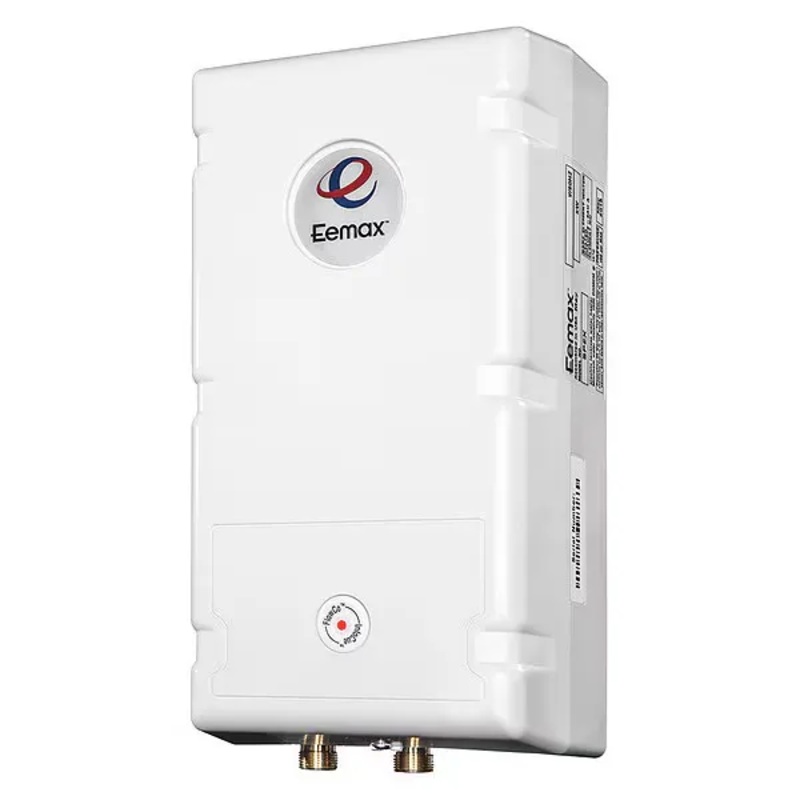

EEMAX SPEX55 Electric Tankless Water Heater, Undersink, Single Phase
EEMAX SPEX55 Electric Tankless Water Heater, Undersink, Single PhaseElectric Tankless Water Heater, Operating Voltage 240V AC, Phase Single, Cold Inlet Size 3/8 in, Maximum Flow Rate 2 gpm, Minimum Flow Activation 0.5 gpm, Overall Height 10.75 in, Overall
EEMAX SPEX55 Electric Tankless Water Heater, Undersink, Single Phase
Electric Tankless Water Heater, Operating Voltage 240V AC, Phase Single, Cold Inlet Size 3/8 in, Maximum Flow Rate 2 gpm, Minimum Flow Activation 0.5 gpm, Overall Height 10.75 in, Overall Width 5.25 in, Overall Depth 3 in, Power Consumption 5,500 W, Maximum Delivered Temperature 140 Degrees F, Minimum Delivered Temperature 70 Degrees F, Current 23 A, Environment Indoor, Market Commercial, Application Kitchen Sinks, Metering Faucets, Lavatory Faucets, Sensor Faucets, Cold Inlet Type Compression
Dimensions
| Wire Size | 12 AWG |
| Depth | 3 |
| Overall Height | 10.75 in |
| Width | 5-1/4 |
| Overall Depth | 3 in |
| Height | 9-3/4 |
| Overall Width | 5.25 in |
| Manufacturer Warranty Length | 1 yr on Parts, 5 yr Limited on Leaks |
| Cold Inlet Size | 3/8 in |
Details
| Promotion Restriction | Not eligible for promotion |
| Item | Electric Tankless Water Heater |
| Item Water Heaters | Electric Tankless Water Heater |
| Water Heater Design | Point-of-Use |
| Water Heater Application | Undersink |
| Commercial / Residential | Commercial |
| Watts Water Heaters | 5500 |
| Amps Water Heaters | 23 |
| Voltage Water Heaters | 240 |
| Min. Flow Activation | 0.50 gpm |
| Phase Water Heaters | 1 |
| Temp. Range Water Heaters | 82 Degrees to 130 Degrees F |
| Standards | UL 499, WQA ANSI/NSF 372, CSA C22.2 -64 |
| Pressure Range | 30 to 150 psi |
| NEMA Rating | 4, 4X |
| Temp. Rise @ 0.5 GPM | 75 Degrees F |
| Temp. Rise @ 6.0 GPM | 6 Degrees F |
| Features | Responsive Flow Controlled Electric Tankless Technology, Reactive Flow Recognition Eliminates The Wait for Hot Water, Safestart(TM) Technology Engages Upon Activation to Avoid The Occurrence of A Dry Fire, Self-Diagnostics Actively Protect The Heater In The Installed Environment, Infocue(TM) Delivers Operation Feedback Via An Intuitive LED Indicator |
| Water Connection | 3/8 Compression |
| Temp. Rise @ 1.5 GPM | 25 Degrees F |
| Phase | Single |
| Temp. Rise @ 2.5 GPM Water Heaters | 15 Degrees F |
| Elements | Replaceable Cartridge Insert |
| Mounting | Any Direction |
| Maximum Water Pressure | 150 psi |
| Mounting Type | Wall Mounting |
| Environment | Indoor |
| Operating Voltage | 240V AC |
| Market | Commercial |
| Element Material | Nichrome |
| Application | Kitchen Sinks, Metering Faucets, Lavatory Faucets, Sensor Faucets |
| Temperature Rise @ Flow | 19 Degrees F @ 2 gpm, 25 Degrees F @ 1.5 gpm, 38 Degrees F @ 1 gpm, 50 Degrees F @ 0.75 gpm, 75 Degrees F @ 0.5 gpm |
| Minimum Flow Activation | 0.5 gpm |
| Current | 23 A |
| Power Consumption | 5,500 W |
| Housing Material | Thermoplastic |
| Minimum Delivered Temperature | 70 Degrees F |
| Maximum Delivered Temperature | 140 Degrees F |
| Maximum Flow Rate | 2 gpm |
| Minimum Water Pressure | 30 psi |
| Cord Conductor Gauge | 12 AWG Wire |
| Cold Inlet Type | Compression |
| Mounting Orientation | Horizontal, Vertical |
