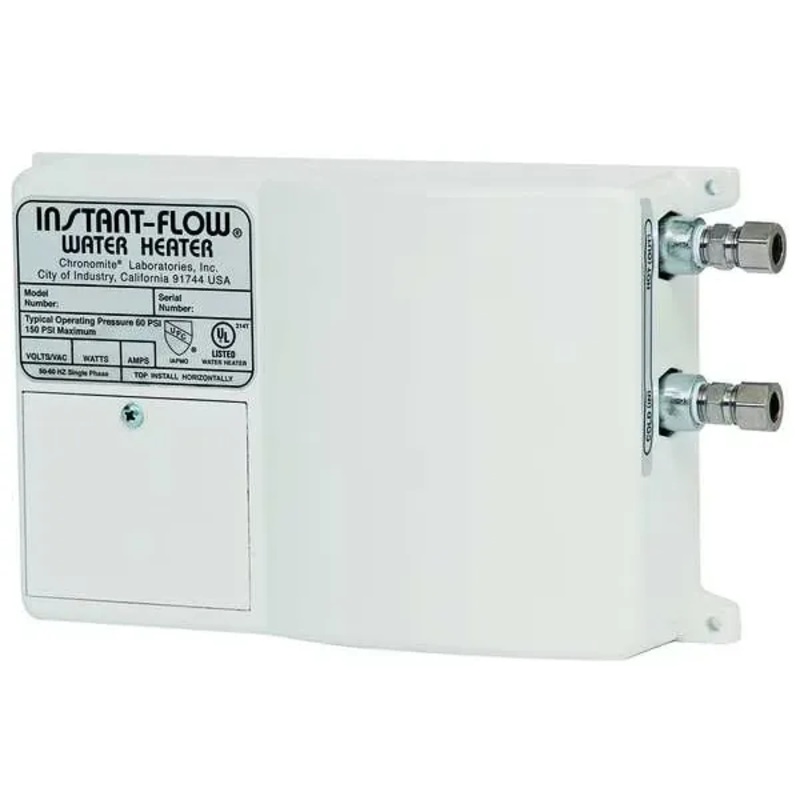

CHRONOMITE LABS SR-20L/120 HTR-I Electric Tankless Water Heater, Wall Mount, 2,400 W, 1.5 gpm Max. Flow Rate, 120V AC, 20 A
CHRONOMITE LABS SR-20L/120 HTR-I Electric Tankless Water Heater, Wall Mount, 2,400 W, 1.5 gpm Max. Flow Rate, 120V AC, 20 AIf you are looking for an energy efficient electric tankless water heater, the Chronomite Labs SR-20L/120 HTR-I is the product to cho
CHRONOMITE LABS SR-20L/120 HTR-I Electric Tankless Water Heater, Wall Mount, 2,400 W, 1.5 gpm Max. Flow Rate, 120V AC, 20 A
If you are looking for an energy efficient electric tankless water heater, the Chronomite Labs SR-20L/120 HTR-I is the product to choose. The point of use water heater has a compact size and can be installed easily in any area. It features both residential and commercial applications, allowing you to enjoy unlimited hot water whenever you need it. With a 99% energy efficiency rating, this unit is cost effective and economical to run. A 3/8 compression water connection makes installation quick and easy. When it comes to home heating solutions, there is no better option than the Chronomite Labs SR-20L/120 HTR-I Point of Use Water Heater.
Dimensions
| Width | 9 5/8 in |
| Height | 6 1/4 in |
| Depth | 2 3/4 in |
| Wire Size | 12 AWG |
| Overall Width | 9.63 in |
| Overall Depth | 2.75 in |
| Overall Height | 6.25 in |
| Hot Outlet Size | 3/8 in |
| Cold Inlet Size | 3/8 in |
Details
| Item Water Heaters | Electric Tankless Water Heater |
| Item | Electric Tankless Water Heater |
| Water Heater Design | Point-of-Use |
| Water Heater Application | Undersink |
| Watts | 2400 |
| Commercial / Residential | Both |
| Watts Water Heaters | 2,400 W |
| Voltage | 120VAC |
| Amps AC | 20 |
| Amps Water Heaters | 20 A |
| Voltage Water Heaters | 120 |
| Min. Flow Activation | 0.35 gpm |
| Phase Water Heaters | 1 |
| Temp. Range Water Heaters | 90 Degrees to 120 Degrees F |
| Residential / Commercial | Both |
| Temp. Range | 90 Degrees to 120 Degrees F |
| Temp. Rise @ 0.5 GPM | 33 Degrees F |
| Features | 99% Energy Efficient, Compact Size, Easy to Install, Low Installation Cost, Unlimited Hot Water |
| Phase | Single |
| Includes | Compression Fittings, Faucet Flow Control |
| Mounting | Horizontal |
| Temp. Rise @ 1.5 GPM | 11 Degrees F |
| Standards | ADA Compliant, cETLus Listed, CSA Certified, IAPMO, UL Listed, UPC |
| Water Connection | 3/8 in Compression |
| Pressure Range | 25 to 150 psi |
| Temp. Rise @ 20.0 GPM | 20 A |
| Max. Flow Rate | 1.5 gpm |
| Maximum Flow Rate | 1.5 gpm |
| Hot Outlet Type | Compression |
| Cold Inlet Type | Compression |
| Application | Hospitality Sink, Manual Hand Washing Faucet |
| Element Material | Celcon Plastic |
| Maximum Water Pressure | 80 psi |
| Minimum Delivered Temperature | 140 Degrees F |
| Current | 20 A |
| Cord Conductor Gauge | 12 AWG Wire |
| Power Consumption | 2,400 W |
| Mounting Orientation | Horizontal |
| Temperature Rise @ Flow | 22 Degrees F @ 0.75 gpm, 41 Degrees F @ 0.40 gpm |
| Housing Material | Aluminum |
| Market | Commercial, Residential |
| Adjustable Thermostat | No |
| Mounting Type | Wall Mounting |
| Minimum Flow Activation | 0.35 gpm |
| Environment | Indoor |
| Minimum Water Pressure | 25 psi |
| Operating Voltage | 120V AC |
| Maximum Delivered Temperature | 160 Degrees F |
